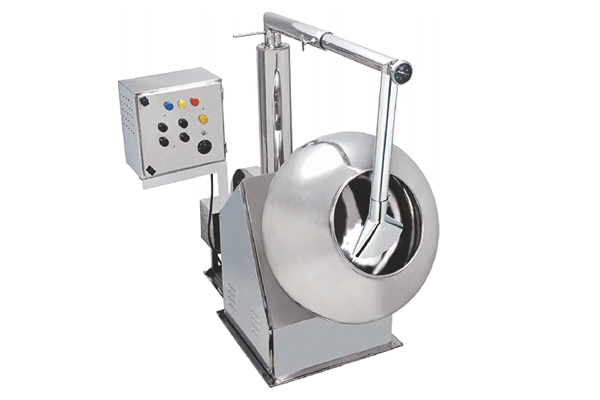

Conventional Coating Pan
CP Series
KEY FEATURES
- Simple & Robust Design
- Pan Fabricated from SS316/316L
- Adequate Mouth Opening & Depth for handling of tablets.
- Easy Mounting - Quick changeover from Coating Pan to Polishing Pan.
- Compact Hot Air Blower with inlet air damping arrangement and filtration
- No Foundation Required - Can be directly installed on a pre-levelled floor.
- Operators can visually monitor coating progress and adjust instantly.
- Suitable for sugar coating, basic film coating, and polishing.
- Low Maintenance Requirements and Ease of Cleaning
- Ease of Cleaning
- Optional HEPA Filter and Flameproof Construction
TECHNICAL DATA
| Model | CP-450 | CP-900 | CP-1200 | CP-1500 |
|---|---|---|---|---|
| Loading Capacity (in Kg) | 15 | 60 | 150 | 200 |
| Drive Motor (in HP) | 0.5 | 1 | 3 | 5 |
| PAN Speed (in RPM) | 24 / 72 | 12 / 36 | 10 / 30 | 8 / 24 |
| Hot Air Blower Motor (in HP) | 0.25 | 0.5 | 1 | 2 |
| Blower Capacity Max. (in CFM) | 100 | 200 | 500 | 750 |
| Heater (in kW) | 1 | 2 | 8 | 12 |
| Pan Mounting | Fixed Angle | Fixed / Varying | Fixed Angle | Fixed Angle |
