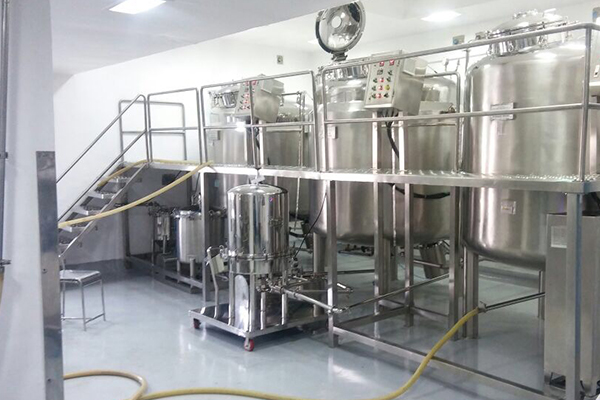

Liquid Manufacturing Plant

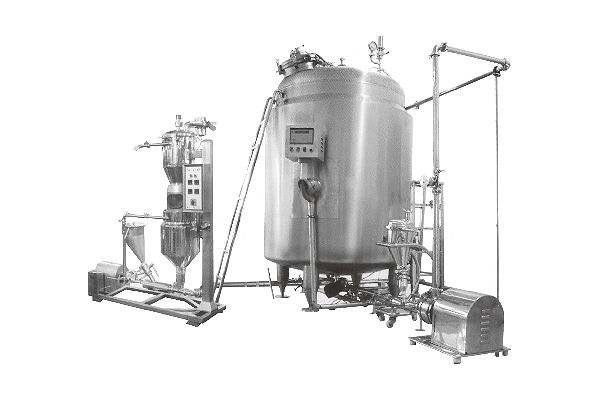

Single Vessel Manufacturing Plant
Liquid Manufacturing Plant
KEY FEATURES
- cGMP Compliant Design - Hygienic construction meeting international pharma standards.
- SS 316 / SS 316L Contact Parts - Ensures high product safety, durability, and corrosion resistance.
- SS304 Non-Contact Parts - Strong and economical support structure.
- Sugar Melting Vessel, Manufacturing Vessel & Storage Vessel - Designed for efficient processing.
- Agitators with Variable Speed Drive (VFD) - Ensures uniform mixing and flexibility.
- Anchor I Propeller / Homogenizer (as required) - For consistent product blending and emulsification.
- CIP & SIP Facility (Optional) - For automatic cleaning and sterilization.
- Bottom Entry /Top Entry Homogenizer - Available as per process requirement.
- Zero Hold-Up Filter Press / Inline Filter - For efficient filtration of syrup/suspension.
- Transfer Pumps with SS Jacketed Piping - Maintains product integrity during transfer.
- Storage Tanks with Level Indicators - For accurate batch monitoring.
- Interconnecting Pipeline with Tri-Clover Fittings - Easy to dismantle, clean, and maintain.
- Jacketed Heating System with Insulation - For controlled heating using steam/hot water.
- Vacuum System (Optional) - Facilitates transfer, deaeration, and dust-free operations.
- Platform with SS 304 Railing & Ladder - For safe operation and maintenance access.
- PLC-Based Control Panel with HMI/Touch Screen - For automated operation, batch data, and process control.
- Compact Skid-Mounted Design - Easy to install, requiring minimal space.
- Customized Capacities - Available from small R&D setups to large-scale production plants
