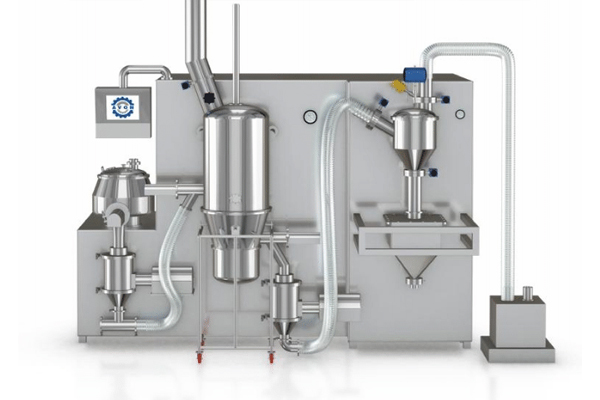

Integrated Granulation Suite
AVON's INTEGRATED GRANULATION SUITE is a Concept Designed, Manufactured and Supplied keeping in mind the criticality of handling potent drugs, cytotopic drugs and similar products which creates adverse effects on operators when exposed directly into the atmosphere.
AVON's IGS facilitates in having a single wall design from Sifting to Blending process thereby encompassing the complete process in a closed loop to avoid exposure.
The design is so unique that all equipments are positioned ergonomically as well as aesthetically giving a new look and feel.
AVON'S IGS is available in 5 kg, 10 kg, 15 kg and 20 kg design based on the end user batch capacities.
The design is such that Commercial scalability is very well kept in mind for End Users commercial batches as well.
SPECIAL FEATURES
- Short Drying time
- Sturdy structure
- Uniform Drying at low temperature
- Intrinsically safe Earthing system
- Fan motor unit can be placed in remote areas
- 0.3-micron class 100 HEPA filter (optional)
- Minimum handling more Hygienic
- All contact parts are made out of S.S.304/316 and provided with isolated control panel
- Available in GMP model
- Heating Mode electrical / Steam / Thermic Fluid
- Inflating tube for filter bag sealing
- 2.5 kg to 300kg batch capacity
- PLC based control panel
TECHNICAL DATA
| Models in Kgs | 10 | 30 | 60 | 120 | 200 | 250 | 300 |
|---|---|---|---|---|---|---|---|
| Bowl Volume in Ltrs | 35 | 110 | 200 | 425 | 625 | 780 | 925 |
| Batch Capacity | 10-15 | 30-40 | 60-75 | 120-150 | 200-240 | 250-290 | 300-325 |
| Motor HP | 2 | 5 | 10 | 15 | 20 | 25 | 30 |
| Heating Capacity in kW | 6 | 8 | 36 | 54* | * | * | * |
| Steam consumption per hour | 15 | 25 | 50 | 100 | 170 | 200 | 250 |
| Drying Temperature °C | 50-80 | 50-80 | 50-80 | 50-80 | 50-80 | 50-80 | 50-80 |
| Height in mm | 1500 | 2100 | 2550 | 2300 | 3500 | 3500 | 3600 |
| Width in mm | 700 | 1000 | 1250 | 1600 | 1900 | 1950 | 2050 |
| Length in mm | 600 | 1400 | 1600 | 2000 | 2200 | 2200 | 2750 |
