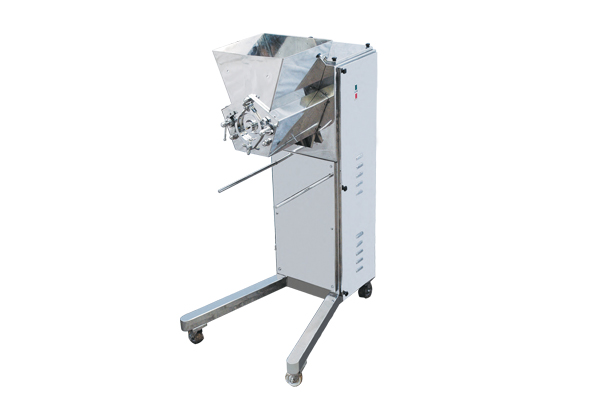

Oscillating Granultor
In tablet making practice the granulation process plays an important part because the quality of the final tablets will be determined by the virtue of the granules used for its compression.
Oscillating Granulator is extensively used wherever tablets or pellets are produced. Oscillating Granulator is used for both wet and dry granulation process. Quality of granules are better.
All contact parts are in Stainless Steel and Mirror Polish. A unique Oscillatory rotor action ensures High output and efficient granulation.
SPECIAL FEATURES
- Sturdy
- Durable
- Better Productivity
- Easy to Clean
- Screen holding - simpler - with Tensioning device
TECHNICAL DATA
| Model | APM-200 |
|---|---|
| Stirrer Diameter | 8" (200mm) |
| Stirrer Motion | Oscillating |
| Output | 220 Kgs/Hr |
| Electric Motor | 1HP/1140RPM/50Hz/3Ph |
