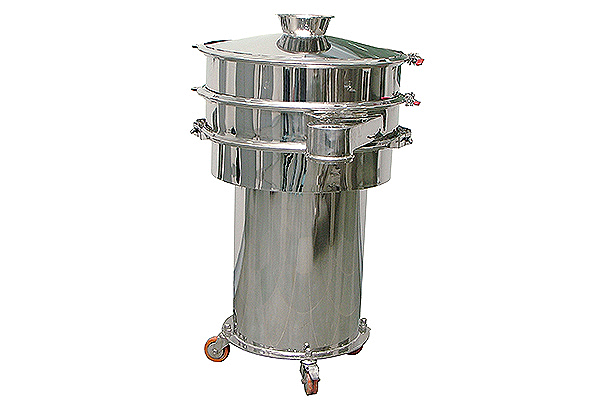

Vibro Sifter
KEY FEATURES
- Available in Standard & GMP Models - Contact parts fabricated in SS 316/316L
- Portable unit designed for continuous, higher-capacity sifting.
- Double / Triple deck units with interchangeable screens for versatile separation.
- Vibration mechanism designed for smooth and quiet performance.
- Low Maintenance Design - Sturdy construction with minimal wear and tear.
- Available in 20", 30", 48", and 60" to suit different batch sizes and applications.
- Accurate Screening & Grading - Ensures uniform particle size distribution.
- Compact & Portable / Easy Dismantling & Cleaning
ABOUT VIBRO SIFTER
Vibro sifters are circular gyratory screens used to separate mass composition of solids, liquid form solid and for gradation of materials as per particle sizes.
Vibration is generated in three different planes along the vertical axis by means of a specially designed vibratory motor having off centered weights at the top and bottom end of the motor shaft. The angle of lead of the lower weight to the upper weight provides variable screening pattern & output.
TECHNICAL DATA
| Model | 12" Lab Model | 20" | 30" | 36" |
|---|---|---|---|---|
| Capacity / Hour (in Kg) | 5 to 50 | 20 to 200 | 30 to 300 | 40 to 360 |
| Screen | SS 304/316. Mesh size as per requirement | SS 304/316. Mesh size as per requirement | SS 304/316. Mesh size as per requirement | SS 304/316. Mesh size as per requirement |
| Screen dia. (in mm) | 340 | 500 | 760 | 900 |
| Charging height (in mm) | 850 | 730 | 730 | 1300 |
| Discharging height (in mm) | 480 | 520 | 520 | 850 |
| Electrical motor (in HP) | 0.18, 415V, 3 Ph., 50 Hz | 0.5, 415V, 3 Ph., 50 Hz | 0.5, 415V, 3 Ph., 50 Hz | 1, 415V, 3 Ph., 50 Hz |
| Overall dimensions (in mm) | 380 W x 380 D x 850 H | 600 W x 600 D x 800 H | 770 W x 770 D x 800 H | 910 W x 910 D x 1300 H |
| Net Weight (in Kg) | 55 | 125 | 175 | 200 |
Note: Output of the machine depends on the bulk density and moisture content of the product.
