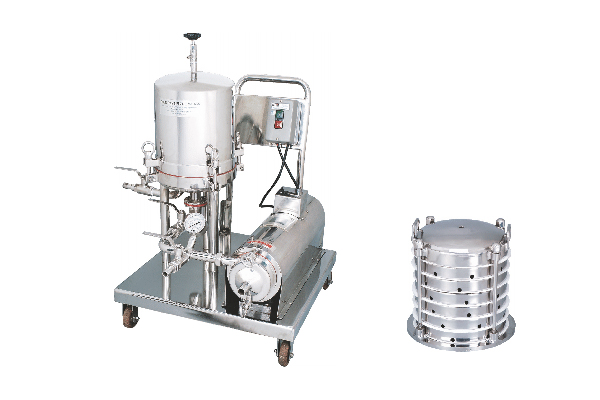

Filter Press
- Specially Designed Horizontal Plate Model with Zero Hold-Up Design
- Suitable Pumps Provided
- Contact Parts in SS 316/316L
- Sturdy Frame Construction, Rigid and vibration-free.
- Uniform Filtration Quality
- Plates and filter media can be quickly removed for product changeover.
- Flexible Filter Media Options
- Portable Unit on Castor Wheels - Easy to move across production areas.
- Used in Pharmaceutical, Chemical, Beverages, Distillery, and Oil Industries.
- cGMP Compliant Construction - Designed for hygienic processing.
Models Available
- 8", 14", 18", 24" & 33"
- Trial facility available at our end
TECHNICAL DATA
| Dia. of Plates | No. of Plates | Filtering Area (sq.m) | Cake Holding Capacity (Ltr.) | Flow Rate / hour | Size of Pump | Motor HP |
|---|---|---|---|---|---|---|
| 8" | 6 8 |
0.217 0.279 |
4.9 6.3 |
600 800 |
1/2" 1/2" |
1 1 |
| 14" | 8 10 12 |
0.819 1.001 1.183 |
24.75 30.25 37.75 |
1500 1700 1900 |
1" 1" 1" |
2 2 2 |
| 18" | 10 12 15 24 |
1.65 1.95 2.40 3.75 |
55 65 80 125 |
4000 4600 5500 8200 |
1 1/2" 1 1/2" 1 1/2" 1 1/2" |
3 3 3 3 |
| 24" | 10 12 15 18 24 |
2.88 3.4 4.192 5.035 6.625 |
99 117 144 171 225 |
7000 7000 7000 8500 12500 |
2" 2" 2" 2" 2" |
5 5 5 5 5 |
| 33" | 14 16 18 22 |
11.65 13.31 14.97 16.63 |
221.25 252.25 284.46 316.06 |
13500 17000 17000 17000 |
2.5" 2.5" 2.5" 2.5" |
7.5 7.5 7.5 7.5 |
